Specifications:

• Batch Order: contact with us for
• Hign-concerned Chemical: None
• Origin: Mainland China
• Service: OEM or ODM service
• Sampling rate: less than 8 times/second
• Power: 90-260V AC or 24V DC

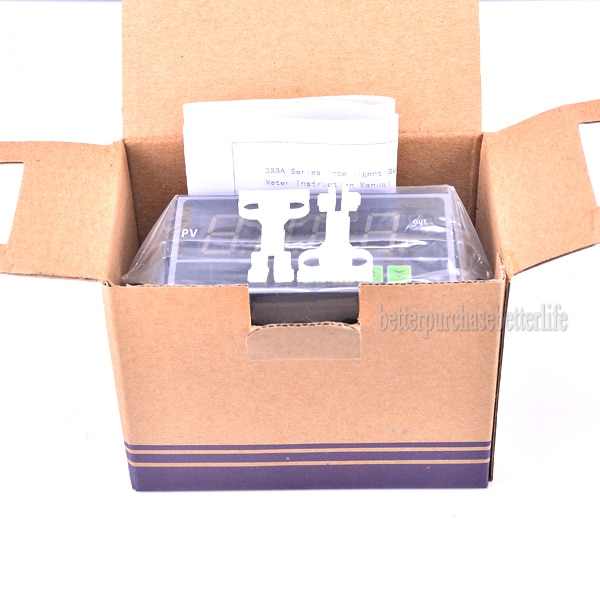

• Package list: 1 * Universal Sensor Meter;2 * Bracket;1 * User Manual (English)
• Output: DC 4-20mA
• Model Number: DS3A-IB
• Max Measuring Range: 400 Bar & Above
• Input: DC 0-10V/0-75mV/4-20mA
• Consumption: less than 5VA
• Brand Name: BENXU
• Application: be suitable for pressure transmitter with 0-10V or 0-75mV or 4-20mA
• Accuracy: +/-0.3%F.S +/-2digit
