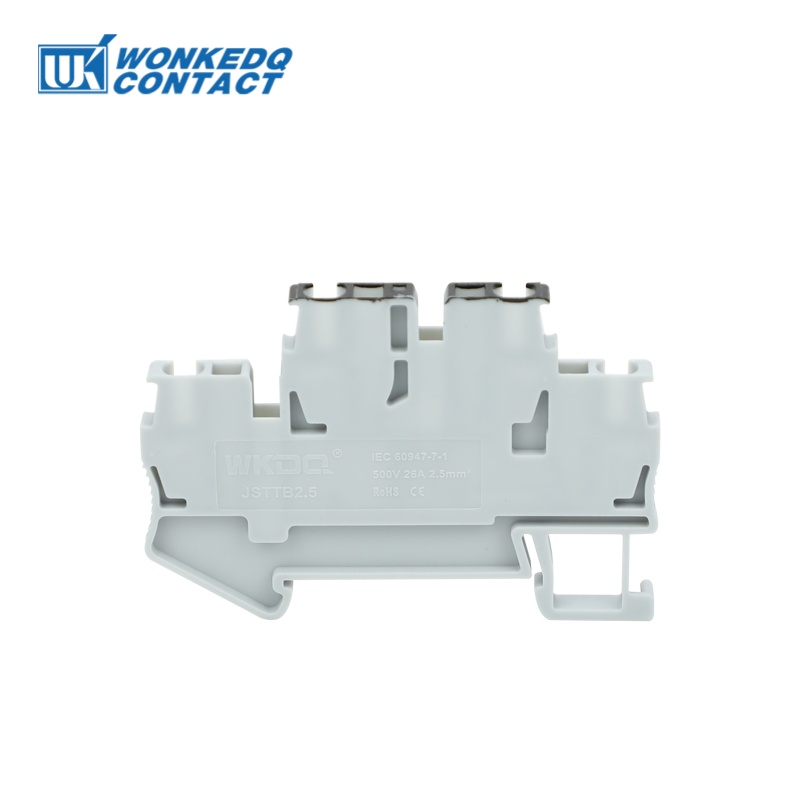

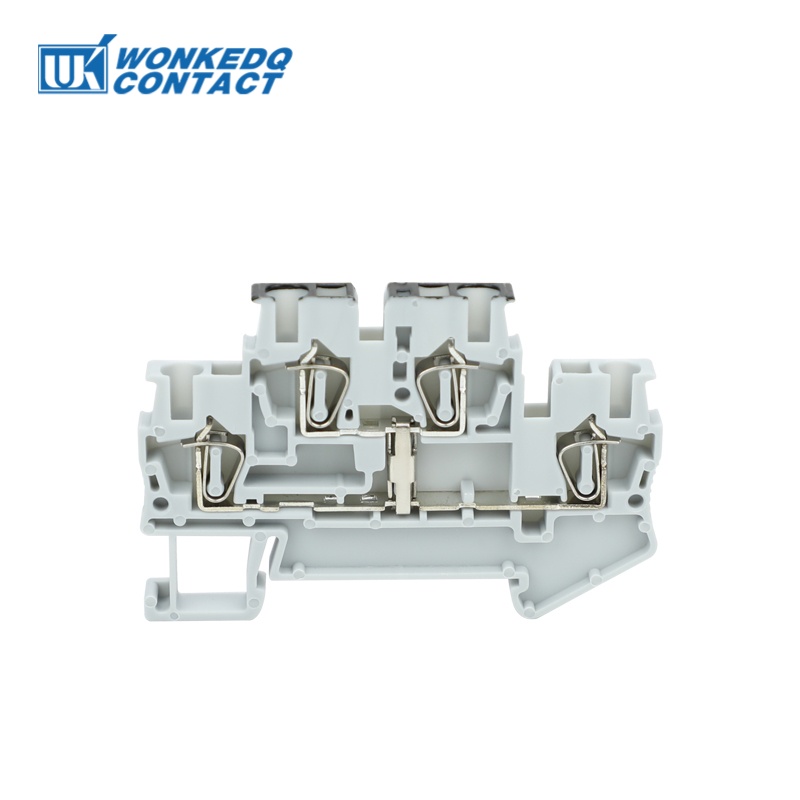

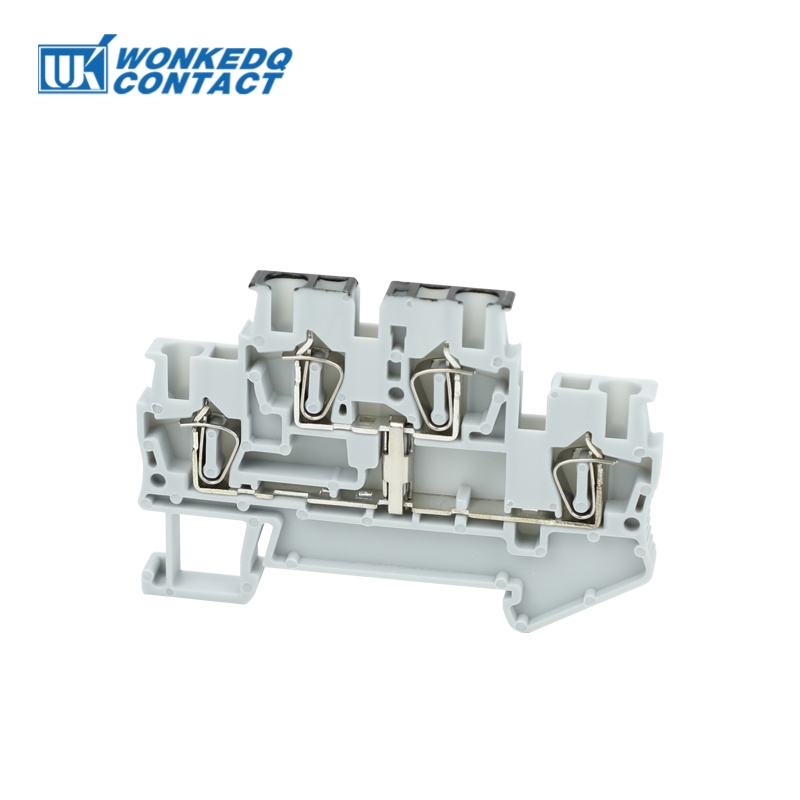

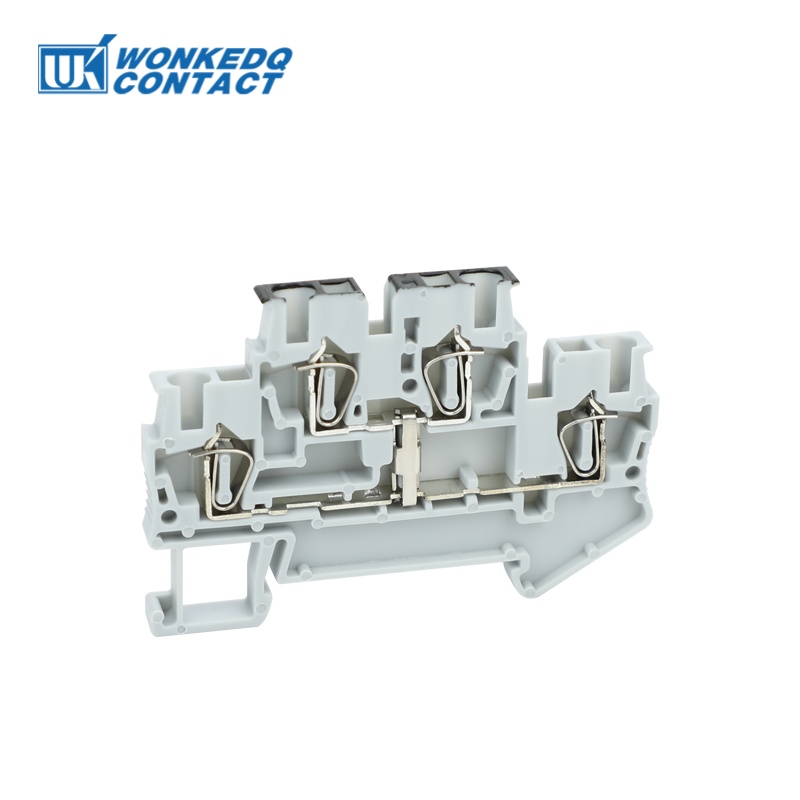

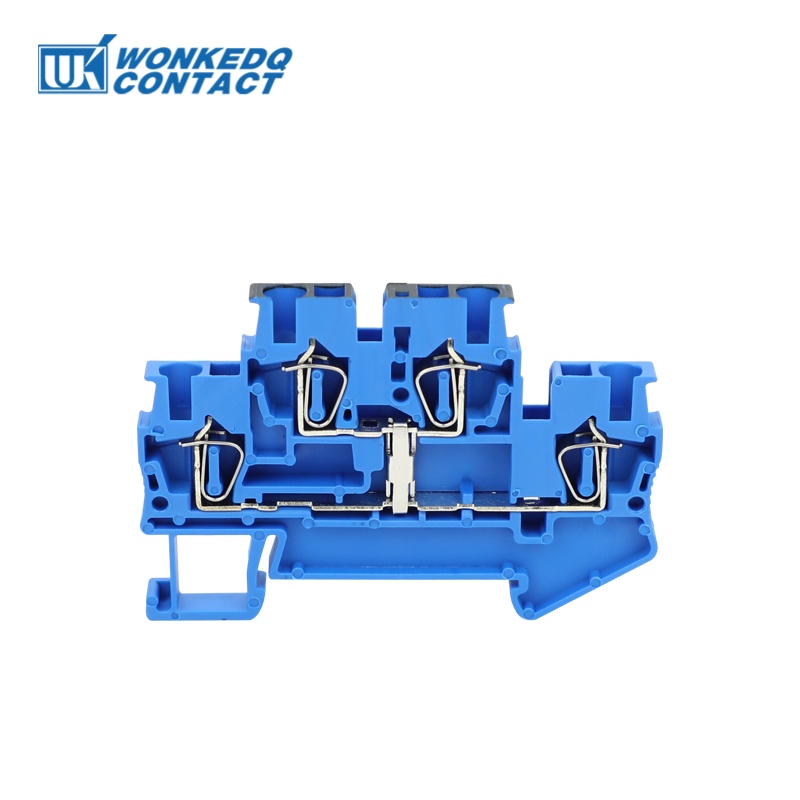

STTB 2.5-PV Double Level Terminal Block Equipotential Bonding 2.5mm² Spring-cage DIN Rail Connector Electric STTB2.5-PV
Specifications:
- Brand Name: WONKEDQ
- Certification: CE
- Certification: RoHS
- Conductor Size: 28-12 AWG, 28-14 AWG
- Connection method: Spring-cage connection
- Cross section, solid/soft Cable: 0.2-4mm²/0.2-2.5mm²
- Hign-concerned Chemical: None

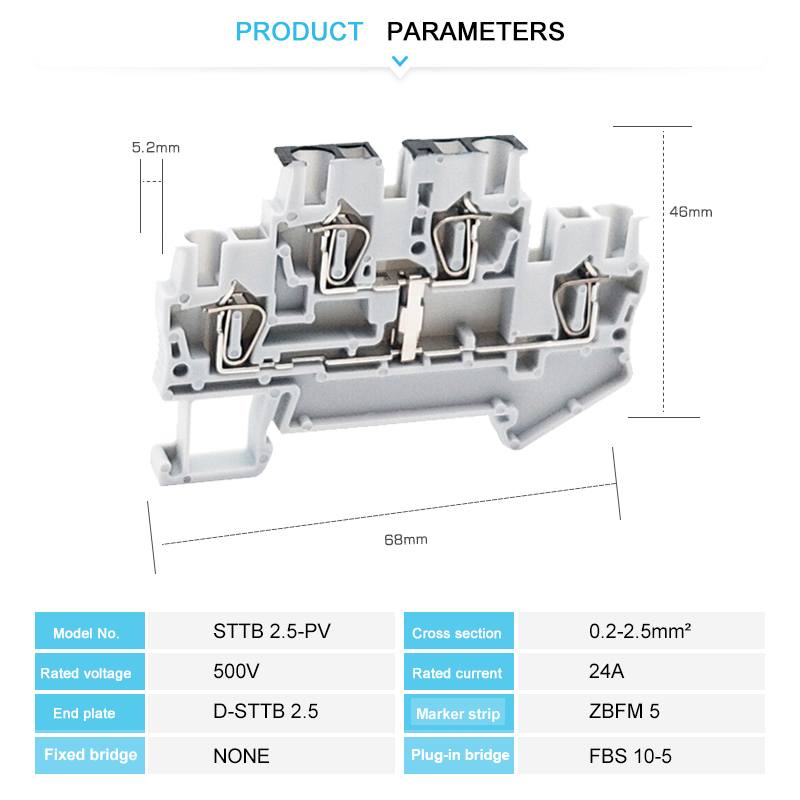

- Length/Wide/Height (mm): L68/H46/W5.2 mm
- Material: Nylon PA66
- Model Number: STTB 2.5-PV
- Model Number: STTB2.5-PV
- Mounting Type: NS 35/7.5
- Number of Contacts: 4 conductors
- Origin: Mainland China
- Rated Voltage/Current: 500V/24A
- Standard: IEC 60947-7-1
- Type: Feed-through Terminal
- Type: Spring
